Linking Requirements to Mappings

To ensure enterprise-wide traceability, you can link your functional requirements to data mappings.

To link functional requirements to mappings, follow these steps:

  1. Go to Application Menu > Data Catalog > Mapping Manager.
  2. Click a mapping.

    3. The mapping opens in the detailed view.

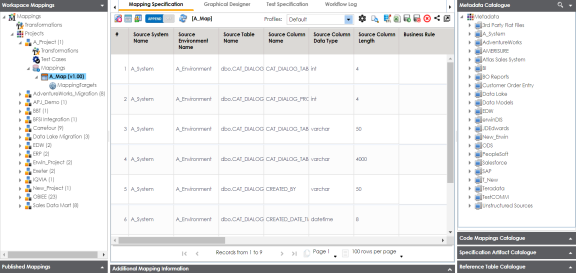

    Linking Requirements Mapping
  3. On the Mapping Specification tab, right click the grid header.

    4. A list of header columns appears.

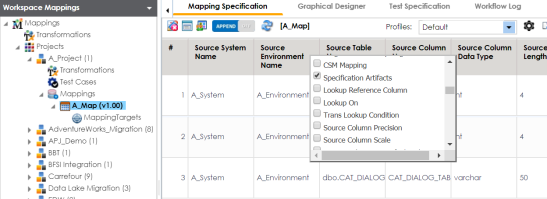

    Header Menu Mapping Specification
  4. Scroll down the list and select the Specification Artifact check box.

    5. The specification Artifact column becomes visible on the Mapping Specification tab.

  5. In the right pane, click Specification Artifact Catalog.
  6. Expand the project that contains the required specification.
  7. Drag and drop the specification on the Specification Artifacts column in the required row.

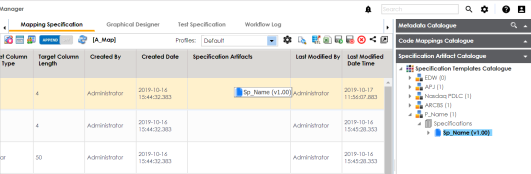

    8. Drag Drop Specification Artifact
  8. Click Icon Save Mapping Specification.

    9. Requirements are linked to the selected mapping.
